PNW Components

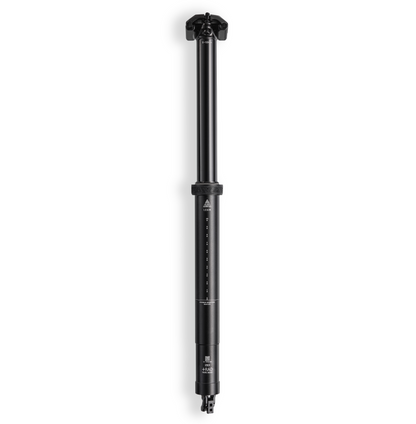

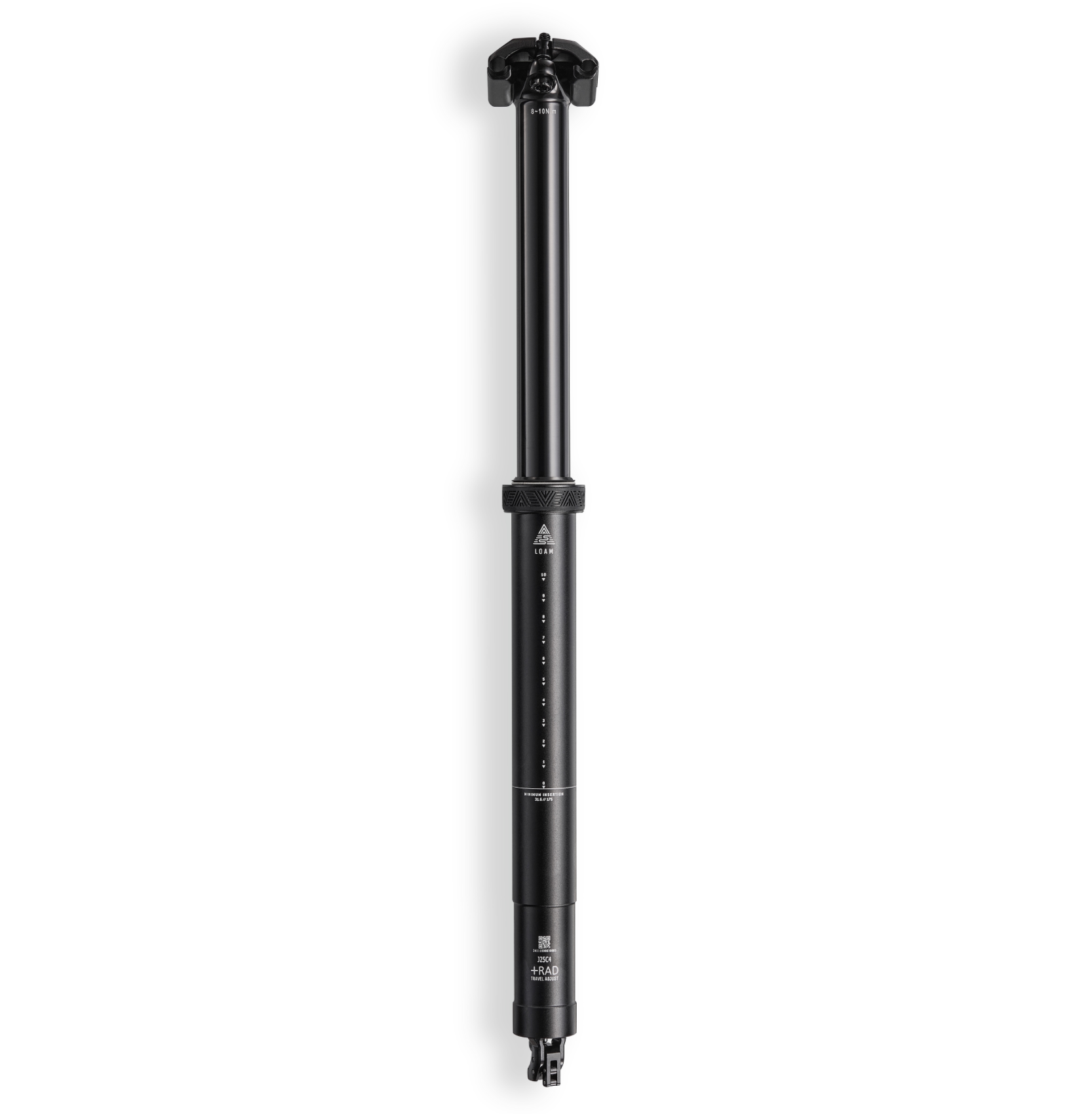

PNW Loam Gen 2 Dropper Post Black

PNW Loam Gen 2 Dropper Post Black

Regular price $399.99 AUD
Regular price Sale price $399.99 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size
Drop

Entering the next level of Loam

Reengineered for rugged climbs and technical descents, the next-generation of the Loam dropper takes our renowned reliability to new highs...... and lows.  Additional sizes and a lower stack height provide a modern fit for you frame and more room to move with less saddle in your business.    A sealed dual-chamber PNW cartridge delivers quiet and smooth fast action with a rock solid, simple to service design.

An updated saddle clamp and slimmeded-down midcap shaves off one gummy bear to 2 oreos worth of stack height making room for more travel on more bikes.  A sealed dual-chamber cartridge delivers smooth, quiet actuation, while a revamped travel adjust design offers a stronger, longer-lasting setup.

New 175mm and 225mm travel options.

Specifications:
Cartridge: PNW Dual-chamber sealed
Routing: Internal
Diameters: 30.9mm, 31.6mm, 34.9mm
Setback: 0 degree
Weight:425g-700g (depending on size)
Travel: 125mm, 150mm, 175mm, 200mm & 225mm
Stanchion Diameter: 30.9 & 31.6mm:26mm; 34.9mm:29mm
Lever compatability: Compatible wiht all PNW levers and most cable-actuated levers from other brands
Travel Adjust: 25mm of tool-less travel adjust in 5mm increments allows riders to hit every 5mm increment between 100 and 225mm

 Travel  125mm  150mm  175mm  200mm  225mm
Seat Collar to Center of Rails 156   181  206 231   256
 Total Length  382  435  485.5  537.5  600
 Min. Insertion Length 90  120   120  150  190
 Full Insertion Length  226  254  279.5  306.5 344
 30.9 Weight  452  490  524 560  614
 31.6 Weight  470  510  544 580   636
 34.9 Weight  516 556   596 636  700



What is the Tool-Less Travel Adjust system?
This system allows you the maximum drop for your post size. We accomplish this through a notched bushing under the midcap collar so you can dial in a more tailored fit. The Gen 2 tool-less travel adjust has an updated shape and burlier design for enhanced durability. 25mm of tool-less travel adjust in 5mm increments allows riders to hit every 5mm increment between 100mm and 225mm.

How often do I need to service the post?
As riding frequency and conditions vary, we do not have a strict service interval. Instead, we recommend servicing your post if it starts to feel sticky/slows down. When it does come down to service it is a quick and easy, at home process.
